SALE

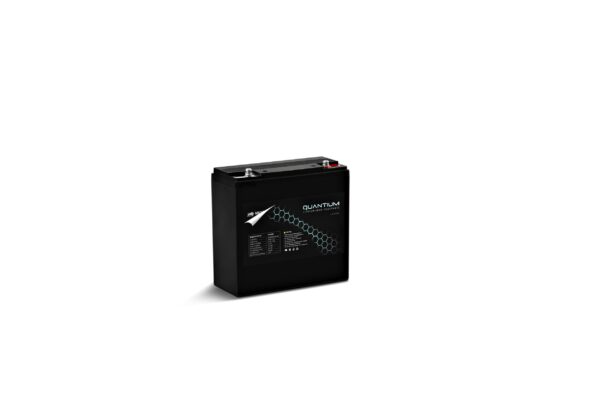

Quantium™ Lithium Iron Phosphate (LiFePO4) 12.8V 24Ah Battery Q-LFP1224
Quantium™ Lithium Iron Phosphate (LiFePO4) 12.8V 24Ah Battery Q-LFP1224 - Image 2
Quantium™ Lithium Iron Phosphate (LiFePO4) 12.8V 24Ah Battery Q-LFP1224 - Image 3

Quantium™ Lithium Iron Phosphate (LiFePO4) 12.8V 24Ah Battery Q-LFP1224

Original price was: $204.60.Current price is: $186.00.

Quantium™ Deep Cycle Lithium Iron Phosphate [LiFeP04] batteries are a safe, high-quality, energy-efficient, lightweight drop-in replacement for traditional Lead Acid, AGM, GEL batteries. They are featuring an integrated quality smart battery management system [BMS] to ensure the safe operation and protection of the battery by monitoring and managing the charging and discharging process.

These LiFePo4 batteries are designed to replace lead-acid batteries for Caravans, Motorhomes, Campers, 4×4, Water Craft, Trolling motors and are perfect for storing solar energy.

Many of the cheap lithiums flooding the market today that use low-quality cells, which results in not only poor performance but worst of all poor safety. Quantium™ batteries are made with the best materials by reputable manufacture; this shows in the quality of their construction and high continuous power output.

Quantium™ LiFePo4 12.8V 24Ah Deep Cycle Lithium Iron Phosphate batteries come with a genuine three-year replacement warranty by Maxon Batteries, an Australian family-owned business, which this also backed locally by Budget Batteries Australia.

Shipping Options

Description

FEATURES

  • High cycle life  5000 @ 50% DOD
  • More economical than AGM / Gel batteries
  • Safest lithium chemistry with high energy
  • In built-in over-charge and over-discharge protection
  • Internal cell balancing
  • Can be connected in series to 51.2V
  • Can be connected in parallel up to 4 batteries
  • Drop-in replacement for lead-acid batteries
  • Lightweight
  • 36-month warranty back by local Australian owned and operated business

SPECIFICATIONS

  • Model: Q-LFP1224
  • Usage: Deep Cycle
  • Type: LifePO4
  • Nominal Voltage: 12.8V
  • Capacity (Usable): 24Ah @ O.2C
  • Energy: 307.2Wh
  • Cycle Life: 2,000 cycles @ 100% DOD
  • Cycle Life: 5,000 cycles @ 50% DOD
  • Self-Discharge: >3% Per Month 25ºC
  • Charge Voltage: 14.6V +/- 0.2V
  • Standby / Float Voltage: 13.6V +/- 0.2V
  • Charge Mode: CC/CV Constant Current/Constant Voltage
  • Continuous Charge: 4.8A
  • Max Charge Current: 12A
  • Max Continuous Discharge Current: 24A
  • Max Pulse Discharge Current: 60S (<3sec)
  • BMS Discharge Cut off Voltage: 10.0V
  • Charge Temp Range:   0 – 45 Deg C
  • Discharge Temp Range:   -20 – 60 Deg C
  • Storage Temp Range:   0 – 45 Deg C
  • IP Protection Level: IP55
  • Cell & Method: Cylindrical IFR32700 N60,4S4P
  • Casing: ABS
  • CE Certified
  • UN38.3 Certified
  • RoHS Certified
  • UL Certified
  • ISO 9001 Certified
  • ISO 1200 Certified
  • Dimensions: L181 x W77 x H167 (mm)
  • Product Weight: 2.9kgs
  • Terminal: M5

 Warranty backed by local Australian owned and operated business

Deep Cycle only, not to be used for cranking or under the bonnet

Model Voltage (V) Ah (C5) Max Continuous Draw Weight (Kg) Dimensions (mm) Terminal Type Private Warranty
Length Width Case Height Terminal Height
Q-LFP1212 12 12 12A 1.6 151 98 95 101 M5 Insert 36 Months
Q-LFP1224 12 24 24A 2.9 181 77 167 167 M5 Insert 36 Months
Q-LFP1242 12 42 42A 5.7 197 165 170 170 M5 Insert 36 Months
Q-LFP1254 12 54 54A 6.7 229 138 212 217 M8 Insert 36 Months
Q-LFP12100 12 100 100A 13.1 328 172 215 220 M8 Insert 36 Months
Q-LFP12100BT 12 100 100A 13.1 328 172 215 220 M8 Insert 36 Months
Q-LFP12150 12 150 100A 19.2 483 170 240 240 M8 Insert 36 Months
Q-LFP12200 12 200 100A 27.0 522 238 218 220 M8 Insert 36 Months
Q-LFP2454 24 54 54A 13.1 328 172 215 220 M8 Insert 36 Months
Q-LFP24100 24 100 100A 27.0 522 238 218 220 M8 Insert 36 Months
Q-LBS12100S 12 100 100A 13.5 600 50 270 270 AP 60 Months
Q-LBS12100S-HD 12 100 200A 13.5 600 50 270 270 AP 60 Months
Q-LBS12200S 12 200 200A 25.0 850 70 275 275 AP 60 Months
Private Warranty: 36 Months      Commercial Warranty: 12 Months

Budget Batteries are an independent, locally owned and operated business

Additional information

Weight3.5 kg
Dimensions31 × 23 × 11 cm
