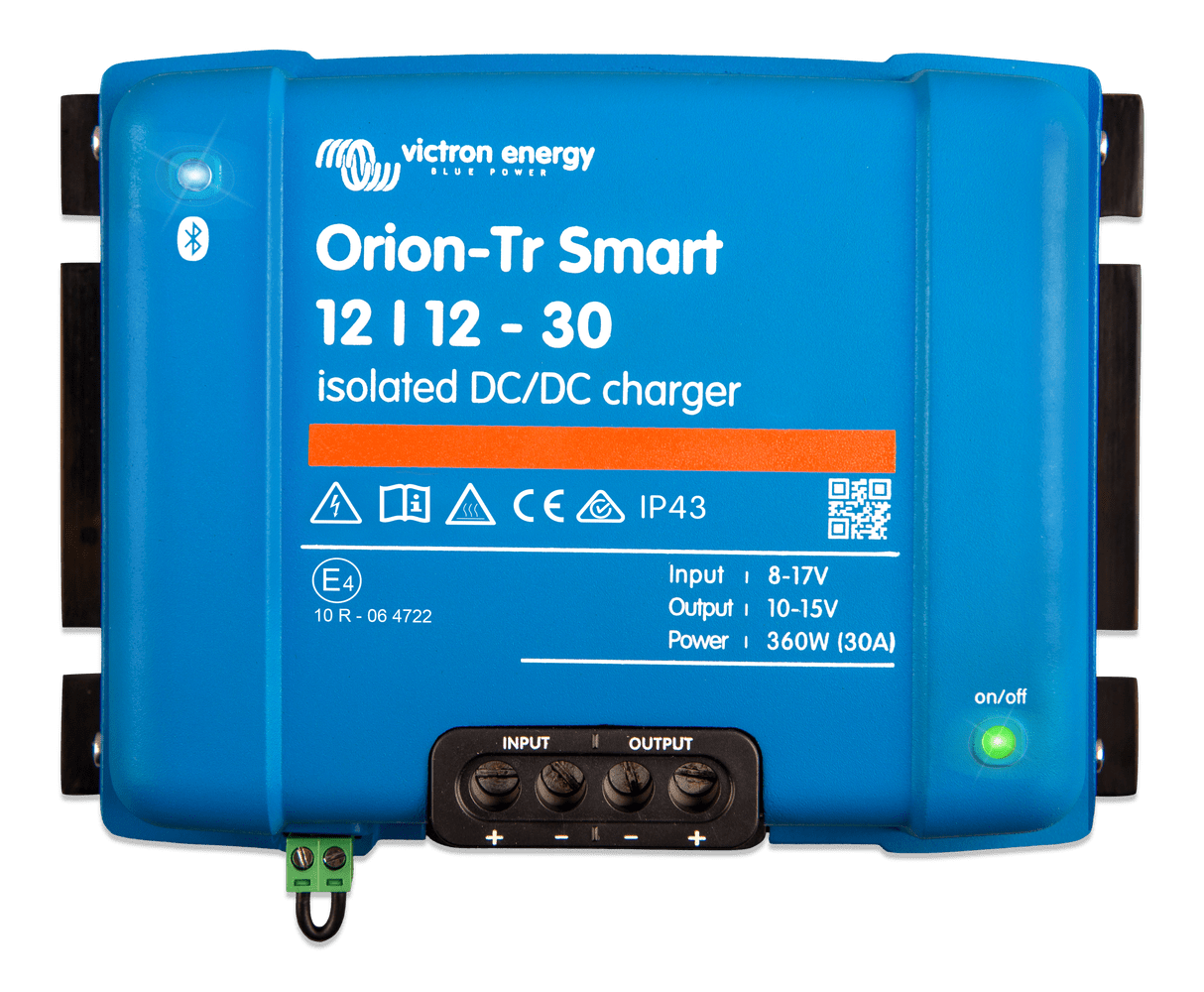

Orion-Tr Smart 12/12-30A Isolated DC-DC Charger ORI121236120​
Orion-Tr Smart 12/12-30A Isolated DC-DC Charger ORI121236120​ - Image 2

Orion-Tr Smart 12/12-30A Isolated DC-DC Charger ORI121236120​

Original price was: $398.20.Current price is: $362.00.

The Orion-Tr Smart DC-DC charger is a professional DC to DC adaptive 3-stage charger with built-in Bluetooth.

For use in vehicles with dual battery systems in vehicles or on boats where the (smart) alternator and the start battery are used to charge the service battery. The unit can be monitored and programmed via Bluetooth, remotely controlled via a remote on/off switch, and has an engine running detection mechanism.

The Orion-Tr Smart charger can be used in 12V or 24V systems and is suitable for lead acid and lithium batteries. Models are available up to 400W, and unlimited multiple units can be connected in parallel to increase output power.

Suitable for high temperatures up to 55°C with a full rated output up to 40°C.

Shipping Options

Description

FEATURES:

  • Bluetooth Smart enabled:   Any Bluetooth–enabled smartphone, tablet, or another device can monitor, change settings and update the charger when new software features become available.
  • Fully programmable:   Battery charge algorithm (configurable) or fixed output. Smart alternator compatibility: engine running detection mechanism.
  • Adaptive 3-stage charge algorithm: bulk – absorption – float:   For lead acid batteries, the absorption time is kept short during shallow discharges to prevent overcharging of the battery. After a deep discharge, the absorption time is automatically increased to ensure the battery is completely recharged.

    – For lithium batteries, absorption time is fixed, default 2 hours.
    –    Alternatively, a fixed output voltage can be chosen.

  • Remote on-off:   A remote on/off switch or relay contact can be connected to a two-pole connector. Alternatively, the H terminal (right) of the two-pole connector can be switched to battery plus, or the L terminal (left) of the two–pole connector can be switched to battery minus (or the chassis of a vehicle, for example).
  • All models are short circuit proof and can be paralleled to increase output current:   An unlimited number of units can be connected in parallel.
  • High temperature protected:   The output current will reduce at high ambient temperature.
  • IP43 protection:   When installed with the screw terminals oriented downwards.
  • Screw terminals:   No special tools are needed for installation.

APPLICATIONS:

  • Motor Vehicles
  • 4WD
  • Motor Homes
  • RV’s
  • Marine

SPECIFICATIONS: (Overview)

  • Brand:    Victron
  • Model:    Orion-Tr Smart 12/12-30A  DC-DC charger
  • Part number:    ORI121236120​
  • Input Voltage:    10 – 17V
  • Nominal output voltage:    12.2V
  • Output voltage adjust range:    10 – 15V
  • Output current:    30A
  • IP Rating:    IP43
  • Dimensions:    L186 x W130 x H80 (mm)
  • Weight:    1.8Kg
  • Warranty:    5 years

* Specification subject to change without notice

** Download the data sheet for complete specifications

** Download the manual for fitting instructions and cable and fuse sizing.

Datasheet
Manual
Model Type Imput Voltage Nominal Output Voltage Output Voltage Adjust Range Output Current IP Rating Dimensions (mm) Weight
Length Width Height
Victron Orion-Tr Smart 12V to 12V DC-DC Chargers
Orion-Tr Smart 12/12-18A Isolated DC-DC Charger 8 - 17V 12.2 10 - 15V 18A IP43 186 130 70 1.3Kg
Orion-Tr Smart 12/12-30A Isolated DC-DC Charger 10 - 17V 12.2 10 - 15V 30A IP43 186 130 80 1.8Kg
Orion-Tr Smart 12/12-30A Non-Isolated DC-DC Charger 10 - 17V 12.2 10 - 15V 30A IP43 186 130 80 1.8Kg
Victron Orion-Tr Smart 12V to 24V DC-DC Chargers
Orion-Tr Smart 12/24-10A Isolated DC-DC Charger 10 - 17V 24.2 20 - 30V 10A IP43 186 130 70 1.3Kg
Orion-Tr Smart 12/24-15A Isolated DC-DC Charger 10 - 17V 24.2 20 - 30V 15A IP43 186 130 80 1.8Kg
Orion-Tr Smart 12/24-15A Non-Isolated DC-DC Charger 10 - 17V 24.2 20 - 30V 15A IP43 186 130 80 1.8Kg
Victron Orion-Tr Smart 24V to 12V DC-DC Chargers
Orion-Tr Smart 24/12-20A Isolated DC-DC Charger 16 - 35V 12.2 10 - 15V 20A IP43 186 130 70 1.3Kg
Orion-Tr Smart 24/12-30A Isolated DC-DC Charger 20 - 35V 12.2 10 - 15V 30A IP43 186 130 80 1.8Kg
Orion-Tr Smart 24/12-30A Non-Isolated DC-DC Charger 20 - 35V 12.2 10 - 15V 30A IP43 186 130 80 1.8Kg
Victron Orion-Tr Smart 24V to 24V DC-DC Chargers
Orion-Tr Smart 24/24-12A Isolated DC-DC Charger 16 - 35V 24.2 20 - 30V 12A IP43 186 130 70 1.3Kg
Orion-Tr Smart 24/24-17A Isolated DC-DC Charger 20 - 35V 24.2 20 - 30V 17A IP43 186 130 80 1.6Kg
Orion-Tr Smart 24/24-17A Non-Isolated DC-DC Charger 20 - 35V 24.2 20 - 30V 17A IP43 186 130 80 1.6Kg
