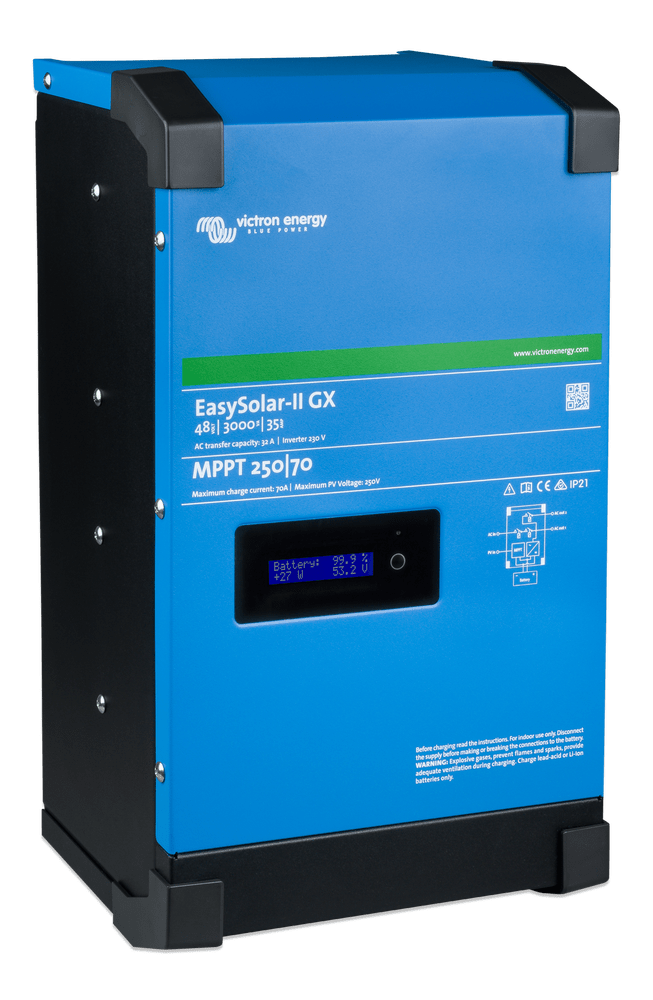

EasySolar-II 48300035-32 MPPT 25070 GX PMP482307010
EasySolar-II 48/3000/35-32 MPPT 250/70 GX PMP482307010 - Image 2
EasySolar-II 48/3000/35-32 MPPT 250/70 GX PMP482307010 - Image 3
EasySolar-II 48/3000/35-32 MPPT 250/70 GX PMP482307010 - Image 4
EasySolar-II 48/3000/35-32 MPPT 250/70 GX PMP482307010 - Image 5
EasySolar-II 48/3000/35-32 MPPT 250/70 GX PMP482307010 - Image 6
EasySolar-II 48/3000/35-32 MPPT 250/70 GX PMP482307010 - Image 7
EasySolar-II 48/3000/35-32 MPPT 250/70 GX PMP482307010 - Image 8

EasySolar-II 48/3000/35-32 MPPT 250/70 GX PMP482307010

Original price was: $2,151.60.Current price is: $1,956.00.

The EasySolar-II GX combines MPPT Solar Charge Controller, inverter/charger, control hub and AC distribution in one unit. This all-in-one unit is easy to install, with a minimum of wiring. It comes complete with MultiPlus-II inverter/charger, Smart solar Tr MPPT controller and a GX device with 2 x16- a character display

EasySolar-II GX is an all-in-one solar power solution. It incorporates all the hardware, including circuit breakers and RCD, in a compact vertical cabinet:

Suitable for off-grid battery chemistries: lithium, AGM, GEL and lead acid batteries

The EasySolar-II GX can feed excess power back into the grid and use the power from the grid if the need arises from a shortage of PV solar power. If there is a power outage from the grid, EasySolar will disconnect the grid and continue to supply the loads.

Contact Budget Batteries for any friendly advice on your requirement.

Shipping Options

Description

FEATURES:

  • All-in-one solar solution:   The EasySolar combines a Smart MPPT solar charge controller, a Multi-Plus Inverter/charger, a GX display device and AC distribution in one unit. The unit is easy to install, with a minimum of wiring.
  • Easy to set up: The unit has an MPPT charge controller and a MultiPlus Compact inverter/charger that share the same DC battery cables (included). The battery bank can be charged with solar and/or AC power (inverter/charger) from the utility grid or a genset.
  • Display and WiFi:  The display monitors the battery, the inverter and the solar charge controller. The same can be accessed with a smartphone or other Wi-Fi-enabled device. In addition, WiFi can be used to set up the system and to change settings.
  • Complete with Circuit Breakers and RCD: The AC distribution consists of RCD, and circuit breakers are all part of the all-in-one set-up
  • Power Assist:   Unique PowerAssist technology protects the utility or generator supply from overload by adding extra inverter power when needed.
  • VRM Portal:   Victron’s free remote monitoring website (VRM) can display all your system data in a graphical format. System settings can be easily changed remotely via the portal, and alarms can be received by e-mail.
  • VRM App for WiFi:  Monitor and manage your Victron Energy system from your smartphone and tablet. Available for both iOS and Android
  • GX Device:  The GX device controls the Inverter and the MPPT controllers with respectively a VE.Bus and a VE.Direct connection.
  • 5-Year warranty: Purchase with the confidence that this quality product is backed with a five-year replacement warranty.

APPLICATIONS:

  • Marine
  • Boats
  • RV’s
  • Caravans
  • Off Grid systems
  • Tiny houses
  • Cabins
  • Sheds

SPECIFICATIONS:

  • Brand:    Victron Energy
  • Model:    PMP482307010
  • System output voltage:    48V
  • Continuous inverter output:    2400W
  • Peak inverter power:    5500W
  • AC Charger input voltage:    230V
  • AC charge current:    35A
  • MPPT controller output:    70A
  • MPPT Maximum PV Voltage:    250V
  • MPPT Maximum PV power:    4000W
  • Dimensions:    W268 x D237 x H499 (mm)
  • Weight:    26.0Kg
  • Warranty:    5 years

* Specification subject to change without notice

** Download the datasheet for complete specifications

Downloads
Model Inverter MPPT 100 / 50 AC Charger Dimensions (mm) Weight
Output System Voltage Continuous Output Power @ 25° Peak Inverter Power Maximum PV Open Circuit Voltage Maximum Output Current Maximum PV Power Input Voltage Amps Width Depth Height
Victron Easysolar Inverter Charger System
EasySolar 12/1600/70-16 230V MPPT 100/50 CEP121621000 12 Volt 1300W 3000W 100V 50A 700W 230V 70A 214 110 745 15.0Kg
EasySolar 24/1600/40-16 230V MPPT 100/50 CEP241621010 24 Volt 1300W 3000W 100V 50A 1400W 230V 40A 214 110 745 15.0Kg
Victron Easysolar-II Inverter Charger System GX
EasySolar-II 24/3000/70-32 MPPT 250/70 GX PMP242307010 24 Volt 2400W 5500W 250V 70A 2000W 230V 70A 268 237 499 26.0Kg
EasySolar-II 48/3000/35-32 MPPT 250/70 GX PMP482307010 48 Volt 2400W 5500W 250V 70A 4000W 230V 35A 268 237 499 26.0Kg
EasySolar-II 48/5000/70-50 MPPT 250/100 GX PMP482507010 48 Volt 4000W 9000W 250V 100A 5800W 230V 70A 323 253 604 38.6Kg
